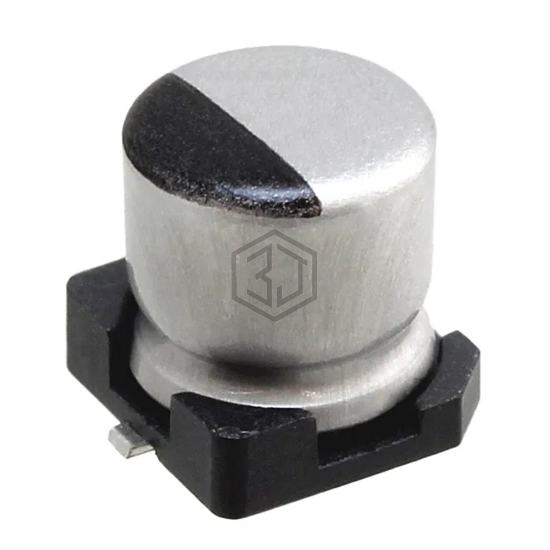

CAP ALUM 47UF 20% 6.3V SMD
UWJ0J470MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 4,913
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 45 mA @ 120 Hz |
| Ripple Current @ High Frequency | 67.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWJ0J470MCL1GB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVK6.3VC47RME55TP | United Chemi-Con | CAP ALUM 47UF 20% 6.3V SMD | 93% | View |
| AFK476M06B12B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 6.3V SMD | 83% | View |
| EEE-1JA470UP | Panasonic Electronic Components | CAP ALUM 47UF 20% 63V SMD | 76% | View |
| 865090449007 | Würth Elektronik | CAP ALUM 47UF 20% 25V SMD | 58% | View |
| 35TLV47M8X10.5 | Rubycon | CAP ALUM 47UF 20% 35V SMD | 56% | View |
| 16JZV47M5X6.1 | Rubycon | CAP ALUM 47UF 20% 16V SMD | 52% | View |
Submit your RFQ for UWJ0J470MCL1GB and get a quote within 24 hours.
