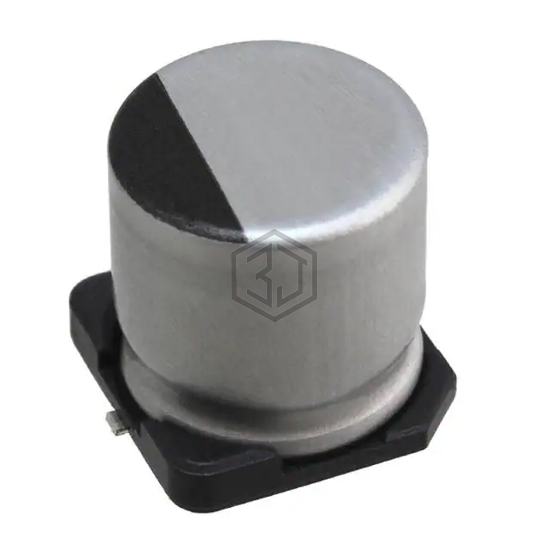

CAP ALUM 100UF 20% 35V SMD
UWH1V101MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,163
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUB1V101MNL1GS | Nichicon | CAP ALUM 100UF 20% 35V SMD | 100% | View |
| AEH0810101M035R | KYOCERA AVX | ALUMINUM CAP | 83% | View |
| UCH1V101MCL1GS | Nichicon | CAP ALUM 100UF 20% 35V SMD | 83% | View |
| EEE-TQV101XAP | Panasonic Electronic Components | CAP ALUM 100UF 20% 35V SMD | 77% | View |
| MAL214099001E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 35V SMD | 76% | View |
| VUJ101M1CTR-0810S | SURGE | CAP ALUM 100UF 20% 16V SMD | 69% | View |
Submit your RFQ for UWH1V101MCL1GS and get a quote within 24 hours.
