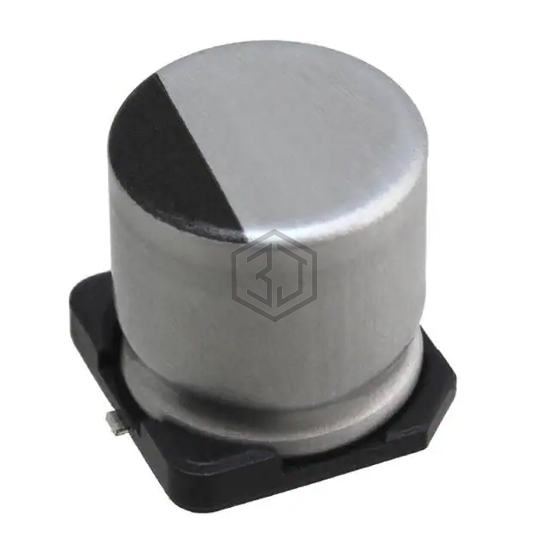

CAP ALUM 47UF 20% 50V SMD
UWH1H470MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 1,588
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 58 mA @ 120 Hz |
| Ripple Current @ High Frequency | 87 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-TG1K470UP | Panasonic Electronic Components | CAP ALUM 47UF 20% 80V SMD | 85% | View |
| AEH0608470M025R | KYOCERA AVX | ALUMINUM CAP | 67% | View |
| EMHJ350ADA470MF80G | United Chemi-Con | CAP ALUM 47UF 20% 35V SMD | 57% | View |
| 35THV47M6.3X8 | Rubycon | CAP ALUM 47UF 20% 35V SMD | 56% | View |
| 16TXV47M6.3X6.1 | Rubycon | CAP ALUM 47UF 20% 16V SMD | 55% | View |
| EEE-TPV470XAV | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 51% | View |
Submit your RFQ for UWH1H470MCL1GS and get a quote within 24 hours.
