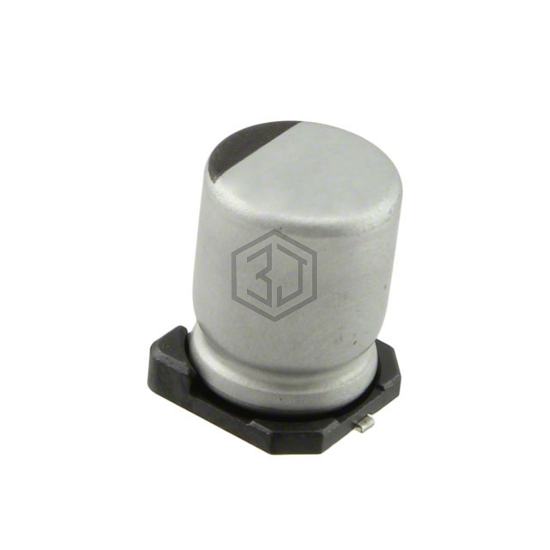

CAP ALUM 220UF 20% 10V SMD
UWH1A221MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 1,955
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 90 mA @ 120 Hz |
| Ripple Current @ High Frequency | 135 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBC1A221MNS1GS | Nichicon | CAP ALUM 220UF 20% 10V SMD | 90% | View |
| MAL214097403E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 10V SMD | 89% | View |
| EEV-TA1A221P | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 88% | View |
| UUB1E221MNL1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 67% | View |
| UUE1E221MNS1GS | Nichicon | CAP ALUM 220UF 20% 25V SMD | 62% | View |
| EDT227M035A9PAA | KEMET | CAP ALUM 220UF 20% 35V SMD | 51% | View |
Submit your RFQ for UWH1A221MCL1GS and get a quote within 24 hours.
