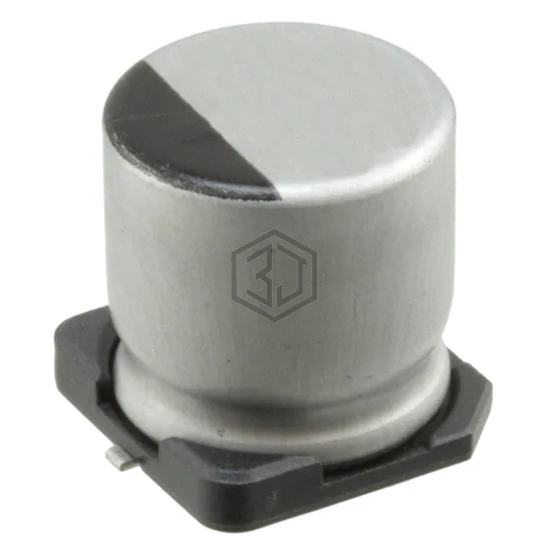

CAP ALUM 220UF 20% 50V SMD
UWG1H221MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,464
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 250 mA @ 120 Hz |
| Ripple Current @ High Frequency | 500 mA @ 100 kHz |
| Impedance | 300 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AEH1213221M050R | KYOCERA AVX | CAP ALUMINUM 220UF 50V | 95% | View |
| UZ227M050HGKTA | Aillen | CAP ALUM 220UF 20% 50V SMD | 95% | View |
| MAL215097102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V SMD | 82% | View |
| EEE-FN1H221L | Panasonic Electronic Components | CAP ALUM 220UF 20% 50V SMD | 80% | View |
| AEH1012221M050R | KYOCERA AVX | AEH/1012/221/050V | 78% | View |
| 6.3JZV220M6.3X6.1 | Rubycon | CAP ALUM 220UF 20% 6.3V SMD | 60% | View |
Submit your RFQ for UWG1H221MNL1GS and get a quote within 24 hours.
