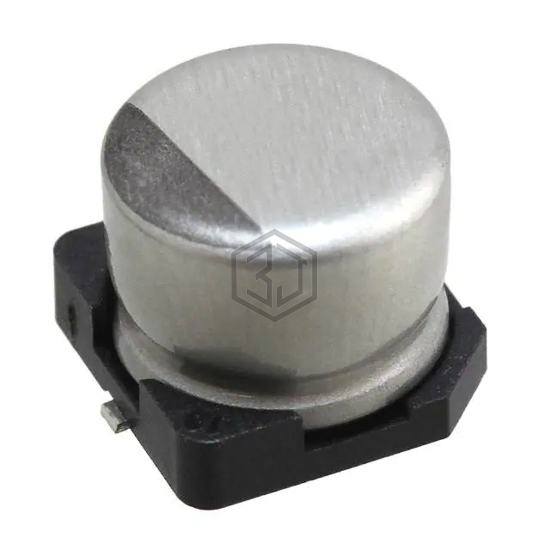

CAP ALUM 10UF 20% 50V SMD
UWG1H100MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 5,847
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 35 mA @ 120 Hz |
| Ripple Current @ High Frequency | 70 mA @ 100 kHz |
| Impedance | 2 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.213" (5.40mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CD050M100D06PE50V00A | Suscon | CAP ALUM 10UF 20% 50V SMD | 89% | View |
| UWT1H100MCL1GB | Nichicon | CAP ALUM 10UF 20% 50V SMD | 86% | View |
| AFK106M50D16B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 50V SMD | 81% | View |
| AFK106M80E16VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 80V SMD | 74% | View |
| EXV106M025S9BAA | KEMET | CAP ALUM 10UF 20% 25V SMD | 64% | View |
| 25SGV10M5X6.1 | Rubycon | CAP ALUM 10UF 20% 25V SMD | 56% | View |
Submit your RFQ for UWG1H100MCL1GB and get a quote within 24 hours.
