CAP ALUM 47UF 20% 25V SMD

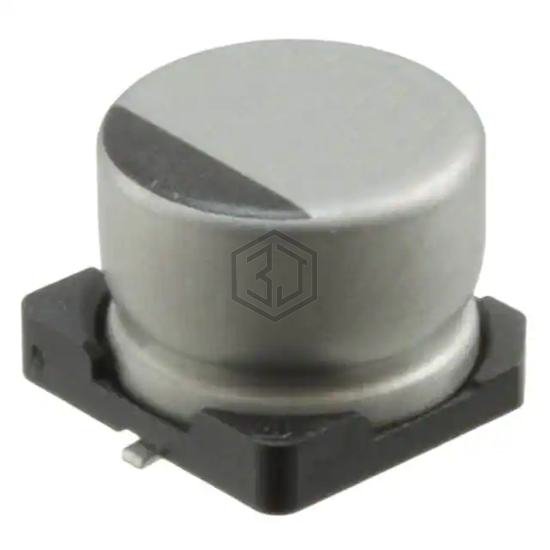

UWG1E470MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 861
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 115 mA @ 120 Hz |
| Ripple Current @ High Frequency | 230 mA @ 100 kHz |
| Impedance | 400 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEV476M025A9GAA | KEMET | CAP ALUM 47UF 20% 25V SMD | 88% | View |
| UE476M035HEJTA | Aillen | CAP ALUM 47UF 20% 35V SMD | 83% | View |
| VZT470M1VTR-0506S | Surge | CAP ALUM 35V POLAR | 83% | View |
| EEE-FK1C470UR | Panasonic Electronic Components | CAP ALUM 47UF 20% 16V SMD | 73% | View |
| EEE-FN1K470UP | Panasonic Electronic Components | CAP ALUM 47UF 20% 80V SMD | 58% | View |
| UCL0J470MCL6GS | Nichicon | CAP ALUM 47UF 20% 6.3V SMD | 57% | View |
Submit your RFQ for UWG1E470MCL1GS and get a quote within 24 hours.
