CAP ALUM 330UF 20% 25V SMD

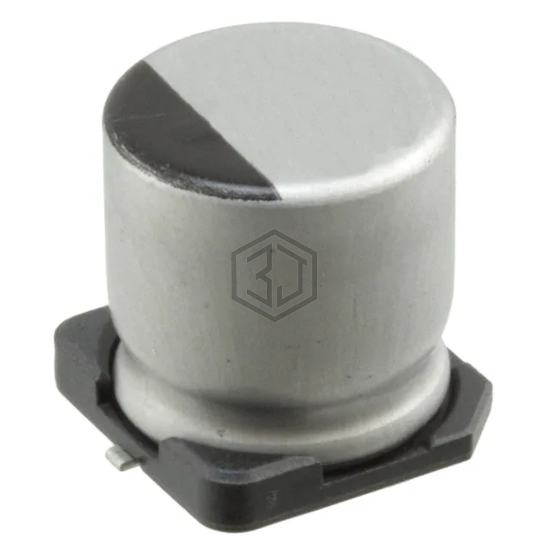

UWG1E331MNL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,070
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | AEC-Q200 |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 335 mA @ 120 Hz |
| Ripple Current @ High Frequency | 670 mA @ 100 kHz |
| Impedance | 150 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUA1E331MNL1GS | Nichicon | CAP ALUM 330UF 20% 25V SMD | 90% | View |
| 337AVD025MGE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 25V SMD | 84% | View |
| UUN1V331MNJ1MS | Nichicon | CAP ALUM 330UF 20% 35V SMD | 83% | View |
| UCL1A331MCL6GS | Nichicon | CAP ALUM 330UF 20% 10V SMD | 67% | View |
| 337SMH6R3M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 6.3V SMD | 65% | View |
| MAL214699711E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 80V SMD | 65% | View |
Submit your RFQ for UWG1E331MNL1GS and get a quote within 24 hours.
