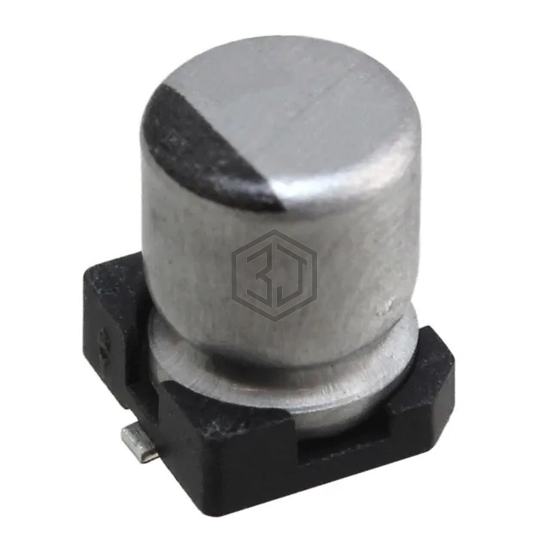

CAP ALUM 4.7UF 20% 35V SMD
UWF1V4R7MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,898
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 50 mA @ 100 kHz |
| Impedance | 5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWF1V4R7MCL1GB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWF1E4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 25V SMD | 91% | View |
| 25SGV4.7M4X6.1 | Rubycon | CAP ALUM 4.7UF 20% 25V SMD | 78% | View |
| 35NSKV4.7M5X5.5 | Rubycon | CAP ALUM 4.7UF 20% 35V SMD | 77% | View |
| EMVY500ADA4R7ME55G | United Chemi-Con | CAP ALUM 4.7UF 20% 50V SMD | 77% | View |
| 50SGV4.7M5X6.1 | Rubycon | CAP ALUM 4.7UF 20% 50V SMD | 69% | View |
| VZH4R7M1HTR-0506S | SURGE | CAP ALUM 4.7UF 20% 50V SMD | 56% | View |
Submit your RFQ for UWF1V4R7MCL1GB and get a quote within 24 hours.
