CAP ALUM 3.3UF 20% 35V SMD

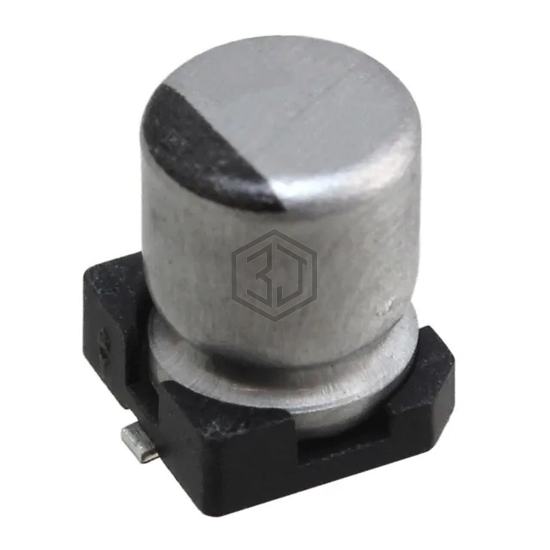

UWF1V3R3MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,161
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 50 mA @ 100 kHz |
| Impedance | 5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWF1V3R3MCL1GB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865060640003 | Würth Elektronik | CAP ALUM 3.3UF 20% 50V SMD | 73% | View |
| UUP1V3R3MCL1GS | Nichicon | CAP ALUM 3.3UF 20% 35V SMD | 72% | View |
| 335AXZ050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3.3UF 20% 50V SMD | 70% | View |
| UUA1H3R3MCL1GS | Nichicon | CAP ALUM 3.3UF 20% 50V SMD | 64% | View |
| UUP1H3R3MCL1GS | Nichicon | CAP ALUM 3.3UF 20% 50V SMD | 64% | View |
| UT335M063HDHTA | Aillen | CAP. ALUM 3.3UF 63V 20% SMD | 57% | View |
Submit your RFQ for UWF1V3R3MCL1GB and get a quote within 24 hours.
