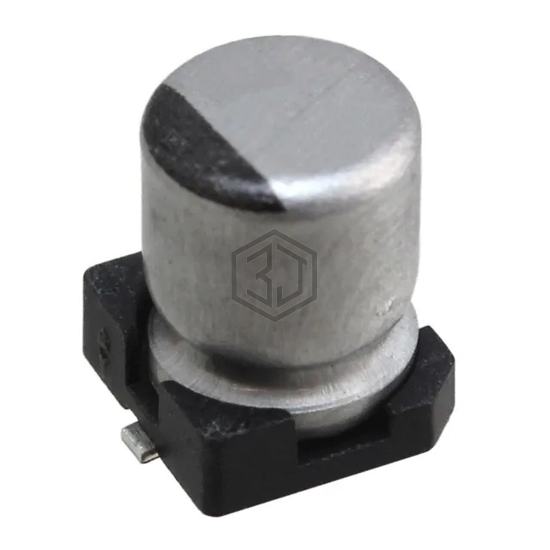

CAP ALUM 6.8UF 20% 25V SMD
UWF1E6R8MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6.8UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,251
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 50 mA @ 100 kHz |
| Impedance | 5 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for UWF1E6R8MCL1GB and get a quote within 24 hours.
