CAP ALUM 10UF 20% 25V SMD

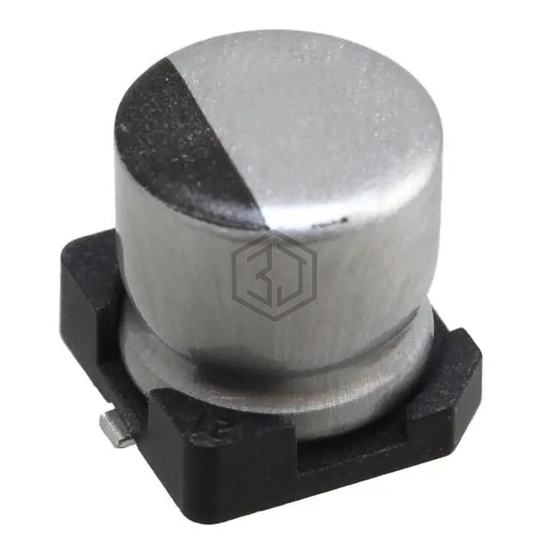

UWF1E100MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 7,299
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | 80 mA @ 100 kHz |
| Impedance | 2.6 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWF1E100MCL1GB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UZ106M025HCHTA | Aillen | CAP ALUM 10UF 20% 25V SMD | 90% | View |
| CD016M100C5APA | Lumimax Optoelectronic Technology | CAP ALUM 10UF 20% 16V SMD | 75% | View |
| EXV106M016A9BAA | KEMET | CAP ALUM 10UF 20% 16V SMD | 73% | View |
| EEE-FK1K100XV | Panasonic Electronic Components | CAP ALUM 10UF 20% 80V SMD | 69% | View |
| 50TZV10M5X6.1 | Rubycon | CAP ALUM 10UF 20% 50V SMD | 66% | View |
| EMK1JM100E83D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 56% | View |
Submit your RFQ for UWF1E100MCL1GB and get a quote within 24 hours.
