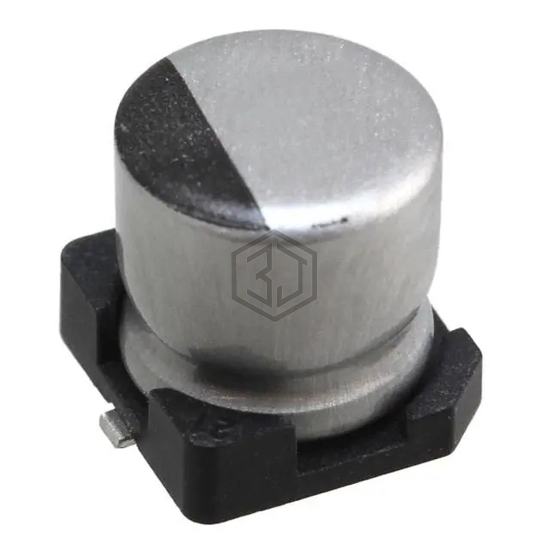

CAP ALUM 47UF 20% 6.3V SMD
UWF0J470MCL1GB is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 3,657
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | - |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | 80 mA @ 100 kHz |
| Impedance | 2.6 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
UWF0J470MCL1GB is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CH006M470D5APE50V00R | Suscon | CAP ALUM 47UF 20% 6.3V SMD | 93% | View |
| EEV476M6R3A9BAA | KEMET | CAP ALUM 47UF 20% 6.3V SMD | 84% | View |
| UUT1A470MCL1GS | Nichicon | CAP ALUM 47UF 20% 10V SMD | 79% | View |
| CH016M470E5APE50V00R | Suscon | CAP ALUM 47UF 20% 16V SMD | 72% | View |
| AHA476M25D16B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 25V SMD | 71% | View |
| UUX1E470MCL6GS | Nichicon | CAP ALUM 47UF 20% 25V SMD | 51% | View |
