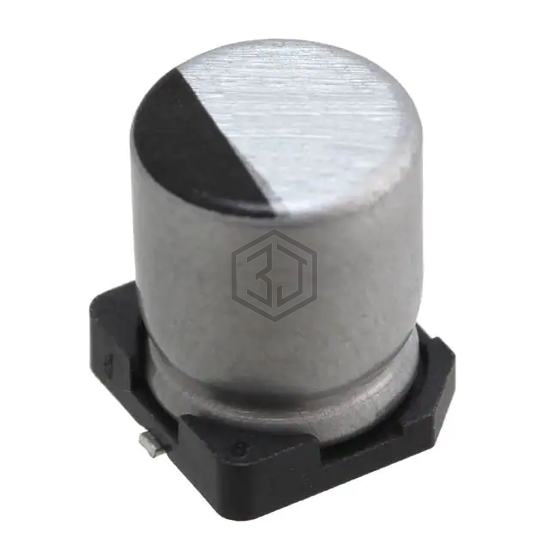

CAP ALUM 56UF 20% 35V SMD
UWD1V560MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,476
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 140 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 40D506F050DF2 | Vishay Sprague | CAP ALUM 50UF 50V AXIAL | 84% | View |
| UBX1K470MPL | Nichicon | CAP ALUM 47UF 20% 80V RADIAL | 75% | View |
| 476RSS050MSAPS | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 50V | 75% | View |
| 476SVF025MSASP | Cornell Dubilier / Illinois Capacitor | CAP ALUM 47UF 20% 25V | 75% | View |
Submit your RFQ for UWD1V560MCL1GS and get a quote within 24 hours.
