CAP ALUM 4.7UF 20% 35V SMD

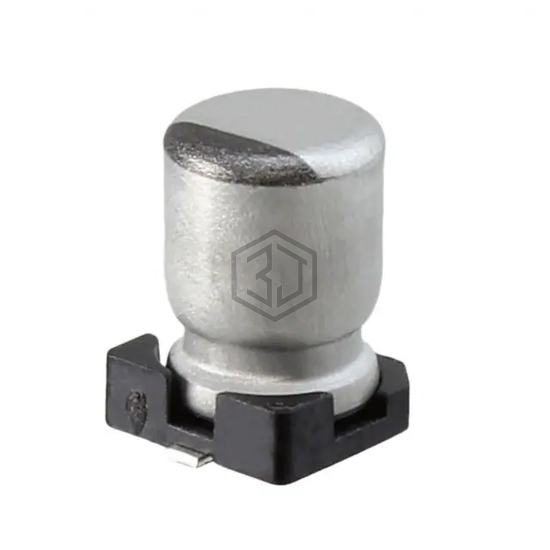

UWD1V4R7MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 9,612
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | 80 mA @ 100 kHz |
| Impedance | 1.8 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.228" (5.80mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 475AVD035MCR | Cornell Dubilier / Illinois Capacitor | CAP ALUM 4.7UF 20% 35V SMD | 100% | View |
| CD035M4R7C06PA | Lumimax Optoelectronic Technology | CAP ALUM 4.7UF 20% 35V SMD | 95% | View |
| CD035M4R7C06PE50V00A | Suscon | CAP ALUM 4.7UF 20% 35V SMD | 90% | View |
| UE475M035HCHTA | Aillen | CAP ALUM 4.7UF 20% 35V SMD | 84% | View |
| 865060742001 | Würth Elektronik | CAP ALUM 4.7UF 20% 63V SMD | 62% | View |
| UWT1V4R7MCL1GB | Nichicon | CAP ALUM 4.7UF 20% 35V SMD | 50% | View |
