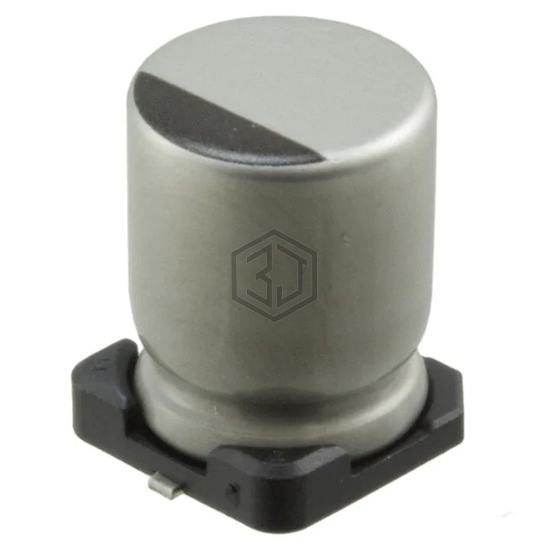

CAP ALUM 150UF 20% 35V SMD
UWD1V151MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 150UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 1,757
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 225 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 100 kHz |
| Impedance | 170 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AEA0810151M025R | KYOCERA AVX | ALUMINUM CAP | 84% | View |
| EEE-FK1V151GL | Panasonic Electronic Components | CAP ALUM 150UF 20% 35V SMD | 79% | View |
| RVZ-35V151MH10U-R2 | Elna America | CAP ALUM 150UF 20% 35V SMD | 77% | View |
| UWT1V151MNL1GS | Nichicon | CAP ALUM 150UF 20% 35V SMD | 75% | View |
| EEE-FKE151XSV | Panasonic Electronic Components | CAP ALUM 150UF 20% 25V SMD | 73% | View |
| AFK157M25F24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 150UF 20% 25V SMD | 69% | View |
