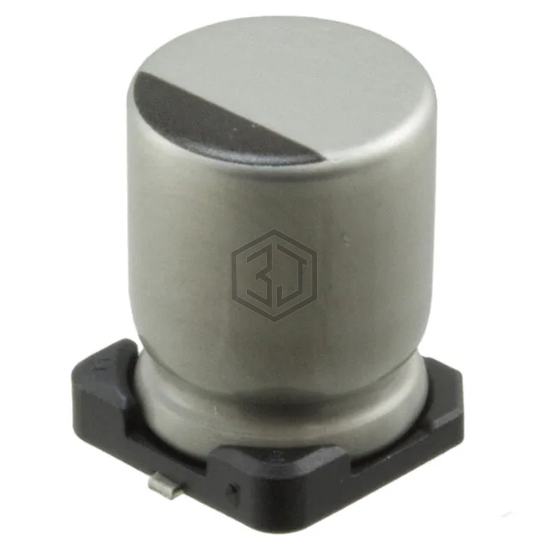

CAP ALUM 56UF 20% 50V SMD
UWD1H560MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 56UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 4,812
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.394" (10.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 865080653014 | Würth Elektronik | CAP ALUM 56UF 20% 50V SMD | 89% | View |
| UUD1V560MCL1GS | Nichicon | CAP ALUM 56UF 20% 35V SMD | 88% | View |
| 566AXZ035M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 56UF 20% 35V SMD | 88% | View |
| EEE-FN1V680UV | Panasonic Electronic Components | CAP ALUM 68UF 20% 35V SMD | 76% | View |
| UUD1A560MCL1GS | Nichicon | CAP ALUM 56UF 20% 10V SMD | 68% | View |
| UWD1E560MCL1GS | Nichicon | CAP ALUM 56UF 20% 25V SMD | 68% | View |
Submit your RFQ for UWD1H560MCL1GS and get a quote within 24 hours.
