CAP ALUM 100UF 20% 50V SMD

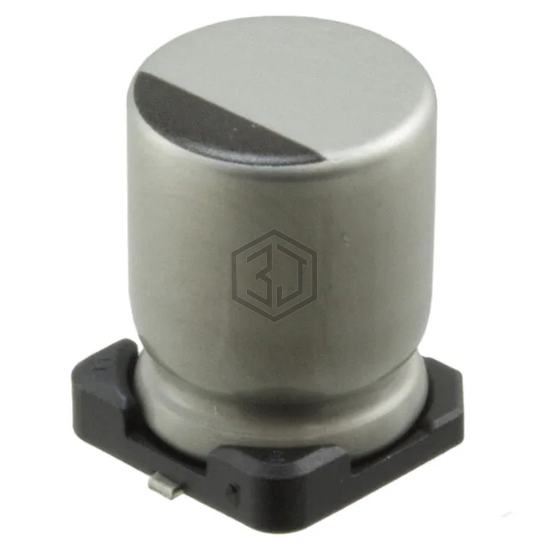

UWD1H101MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 100UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 7,743
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUD1E101MCL1GS | Nichicon | CAP ALUM 100UF 20% 25V SMD | 79% | View |
| UCL1C101MCL1GS | Nichicon | CAP ALUM 100UF 20% 16V SMD | 78% | View |
| 865080449011 | Würth Elektronik | CAP ALUM 100UF 20% 25V SMD | 76% | View |
| EEV107M025S9HAA | KEMET | CAP ALUM 100UF 20% 25V SMD | 75% | View |
| 16JZV100M6.3X6.1 | Rubycon | CAP ALUM 100UF 20% 16V SMD | 74% | View |
| EEE-FK1E101AL | Panasonic Electronic Components | CAP ALUM 100UF 20% 25V SMD | 73% | View |
Submit your RFQ for UWD1H101MCL1GS and get a quote within 24 hours.
