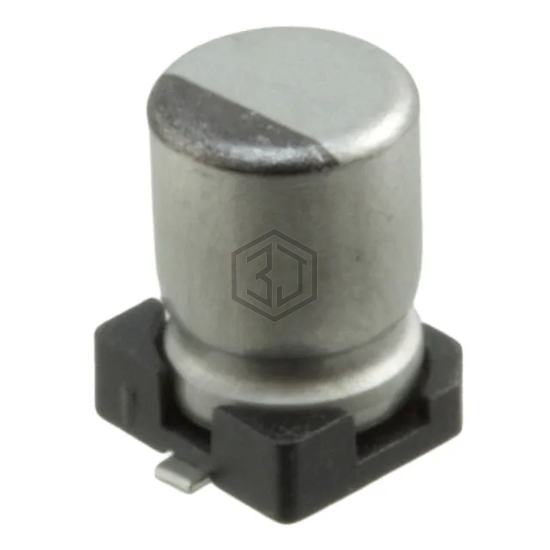

CAP ALUM 10UF 20% 25V SMD
UWD1E100MCL1GS is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 4,806
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 40 mA @ 120 Hz |
| Ripple Current @ High Frequency | 80 mA @ 100 kHz |
| Impedance | 1.8 Ohms |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25SZV10M5X5.5 | Rubycon | CAP ALUM 10UF 20% 25V SMD | 100% | View |
| 865080440002 | Würth Elektronik | CAP ALUM 10UF 20% 25V SMD | 92% | View |
| EEE-FN1K100XP | Panasonic Electronic Components | CAP ALUM 10UF 20% 80V SMD | 71% | View |
| AFK106M80X16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 80V SMD | 70% | View |
| EEE-FN1A100R | Panasonic Electronic Components | CAP ALUM 10UF 20% 10V SMD | 67% | View |
| AVES106M25C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 25V SMD | 61% | View |
Submit your RFQ for UWD1E100MCL1GS and get a quote within 24 hours.
