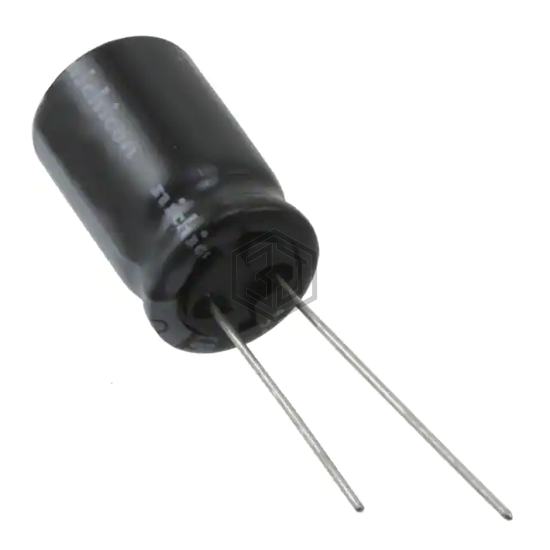

CAP ALUM 33UF 20% 450V RADIAL
UVZ2W330MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 9,557
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 165 mA @ 120 Hz |
| Ripple Current @ High Frequency | 264 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ2W330MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB00JS233P00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 450V RADIAL | 95% | View |
| B43866C4336M | EPCOS - TDK Electronics | CAP ALUM 33UF 20% 350V RADIAL | 81% | View |
| 63RX3033M8X11.5 | Rubycon | CAP ALUM 33UF 20% 63V RADIAL | 73% | View |
| 63YXJ33M6.3X11 | Rubycon | CAP ALUM 33UF 20% 63V RADIAL | 69% | View |
| MAL214253393E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 33UF 20% 250V RADIAL | 57% | View |
| 450BXW33MEFR12.5X30 | Rubycon | CAP ALUM 33UF 20% 450V RADIAL | 52% | View |
Submit your RFQ for UVZ2W330MHH and get a quote within 24 hours.
