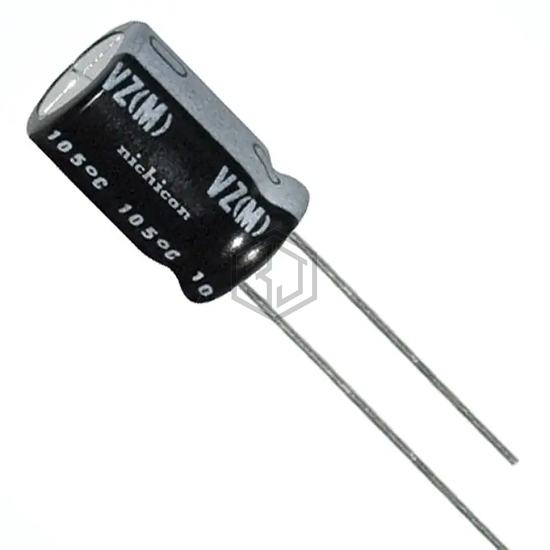

CAP ALUM 3.3UF 20% 350V RADIAL
UVZ2V3R3MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3.3UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 7,918
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 3.3 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 38 mA @ 120 Hz |
| Ripple Current @ High Frequency | 60.8 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ2V3R3MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPM2E3R3MPD1TD | Nichicon | CAP ALUM 3.3UF 20% 250V RADIAL | 75% | View |
| UKL1H3R3KDDANATA | Nichicon | CAP ALUM 3.3UF 10% 50V RADIAL | 71% | View |
| 335CKE100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3.3UF 20% 100V RADIAL | 69% | View |
| MAL211651338E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3.3UF 20% 50V RADIAL | 69% | View |
| 100PX3.3MEFC5X11 | Rubycon | CAP ALUM 3.3UF 20% 100V RADIAL | 66% | View |
| EEU-HD1H3R3 | Panasonic Electronic Components | CAP ALUM 3.3UF 20% 50V RADIAL | 58% | View |
Submit your RFQ for UVZ2V3R3MPD and get a quote within 24 hours.
