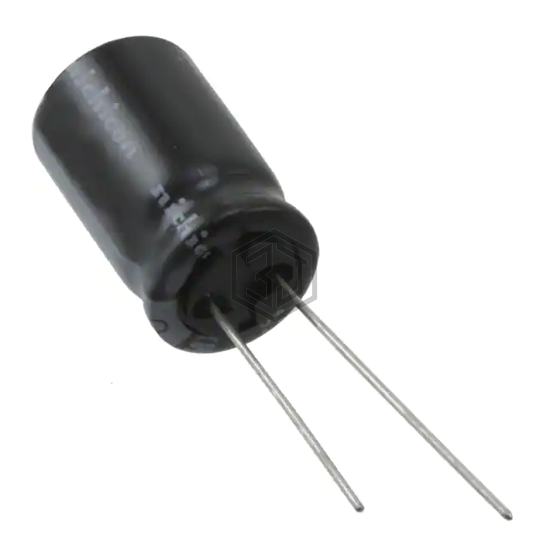

CAP ALUM 33UF 20% 350V RADIAL
UVZ2V330MHH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 8,089
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz |
| Ripple Current @ High Frequency | 312 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ2V330MHH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ2G330MHH | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 91% | View |
| 350TXW33MEFR10X25 | Rubycon | CAP ALUM 33UF 20% 350V RADIAL | 79% | View |
| 860040773001 | Würth Elektronik | CAP ALUM 33UF 20% 63V RADIAL | 72% | View |
| 860160673013 | Würth Elektronik | CAP ALUM 33UF 20% 50V RADIAL | 70% | View |
| 450HXW33MEFR12.5X20 | Rubycon | CAP ALUM 33UF 20% 450V RADIAL | 65% | View |
| UCYW6330MHD3 | Nichicon | CAP ALUM 33UF 20% 420V RADIAL | 57% | View |
Submit your RFQ for UVZ2V330MHH and get a quote within 24 hours.
