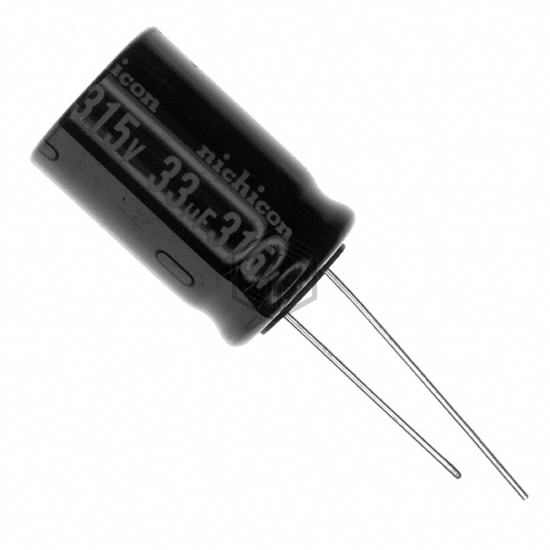

CAP ALUM 33UF 20% 315V RADIAL
UVZ2F330MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 315V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 315 V, package / case Radial, Can.
In Stock: 3,585
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 195 mA @ 120 Hz |
| Ripple Current @ High Frequency | 292.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ2F330MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 600D336F150DL4 | Vishay Sprague | CAP ALUM 33UF 150V AXIAL | 64% | View |
| UBT2A330MPD | Nichicon | CAP ALUM 33UF 20% 100V RADIAL | 62% | View |
| UCY2D330MPD1TD | Nichicon | CAP ALUM 33UF 20% 200V RADIAL | 58% | View |
| 350BXW33MEFR12.5X20 | Rubycon | CAP ALUM 33UF 20% 350V RADIAL | 58% | View |
| PEG124YJ2330QE4 | KEMET | CAP ALUM 33UF 450V AXIAL | 57% | View |
| 50YXG33MEFC6.3X11 | Rubycon | CAP ALUM 33UF 20% 50V RADIAL TH | 56% | View |
Submit your RFQ for UVZ2F330MHD and get a quote within 24 hours.
