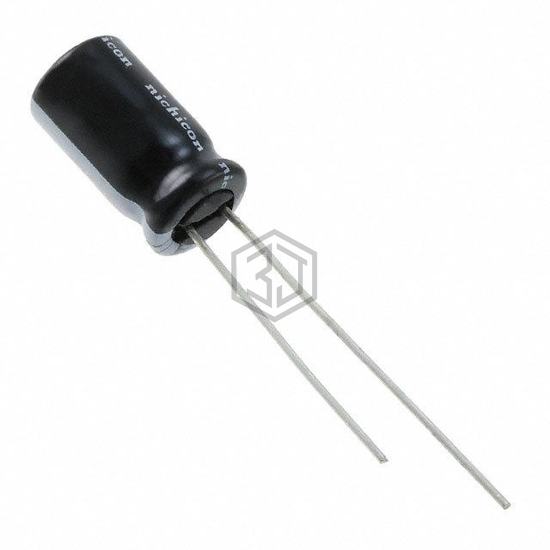

CAP ALUM 22UF 20% 100V RADIAL
UVZ2A220MED1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 2,430
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 93 mA @ 120 Hz |
| Ripple Current @ High Frequency | 186 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ2A220MED1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBW1K220MPD1TA | Nichicon | CAP ALUM 22UF 20% 80V RADIAL | 83% | View |
| 672D226F150DT5D | Vishay Sprague | CAP ALUM 22UF 150V RADIAL | 74% | View |
| 610D226F150DR2 | Vishay Sprague | CAP ALUM 22UF 150V AXIAL | 74% | View |
| EEU-FC1V220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 35V RADIAL | 73% | View |
| 630D226M063DC2A | Vishay Sprague | CAP ALUM 22UF 20% 63V AXIAL | 70% | View |
| EEA-GA1H220B | Panasonic Electronic Components | CAP ALUM 22UF 20% 50V RADIAL | 59% | View |
