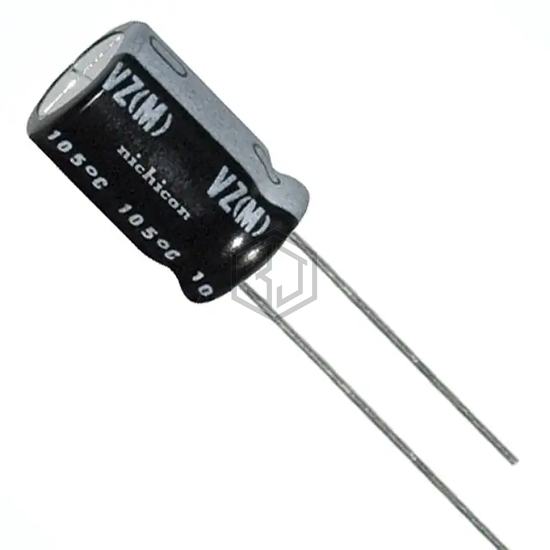

CAP ALUM 220UF 20% 63V RADIAL
UVZ1J221MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 5,343
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 335 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ1J221MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50PX220MEFC10X12.5 | Rubycon | CAP ALUM 220UF 20% 50V RADIAL | 88% | View |
| MAL214058221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V RADIAL | 84% | View |
| MAL211917221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 40V AXIAL | 68% | View |
| 860080474010 | Würth Elektronik | CAP ALUM 220UF 20% 25V RADIAL | 56% | View |
| MAL216035221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 16V RADIAL | 56% | View |
| EEU-HD1C221 | Panasonic Electronic Components | CAP ALUM 220UF 20% 16V RADIAL | 51% | View |
