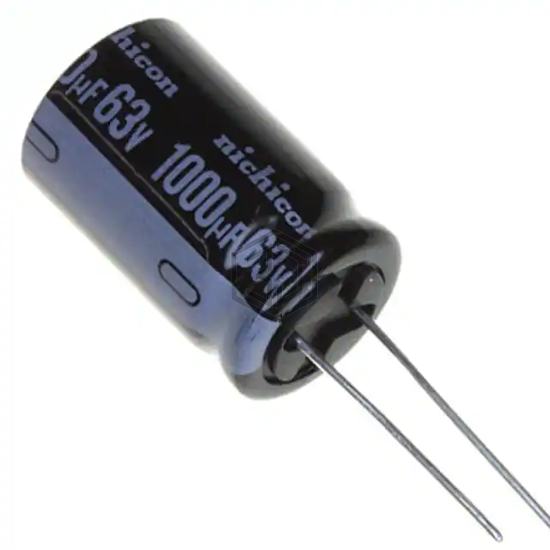

CAP ALUM 1000UF 20% 63V RADIAL
UVZ1J102MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 4,950
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 930 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.0695 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ1J102MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 517D108M063EN6AE3 | Vishay Sprague | CAP ALUM 1000UF 20% 63V RADIAL | 88% | View |
| UKA1V102MHD1TO | Nichicon | CAP ALUM 1000UF 20% 35V RADIAL | 78% | View |
| UPA1A102MPD3TD | Nichicon | CAP ALUM 1000UF 20% 10V RADIAL | 75% | View |
| ELXY250EMC102MK25S | United Chemi-Con | CAP ALUM 1000UF 20% 25V RADIAL | 66% | View |
| RXW102M1EBK-1320S | SURGE | CAP ALUM 1000UF 20% 25V RADIAL | 57% | View |
| EKMG100ELL102MJC5S | United Chemi-Con | CAP ALUM 1000UF 20% 10V RADIAL | 52% | View |
