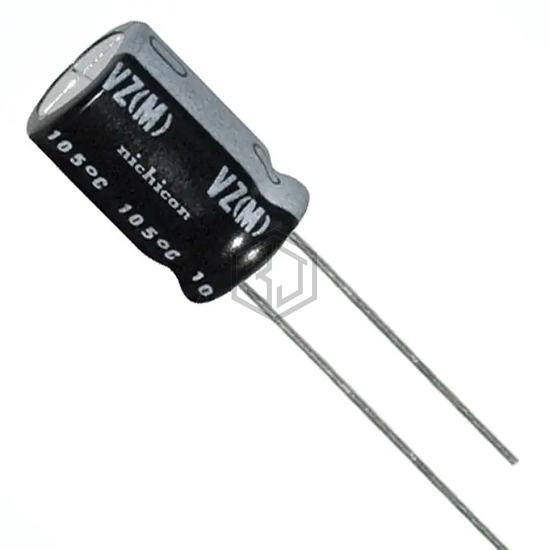

CAP ALUM 220UF 20% 50V RADIAL
UVZ1H221MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 220UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,099
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 300 mA @ 120 Hz |
| Ripple Current @ High Frequency | 450 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ1H221MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UEP1H221MHD1TO | Nichicon | CAP ALUM 220UF 20% 50V RADIAL | 100% | View |
| MAL213638221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V RADIAL | 90% | View |
| 517D227M050CD6AE3 | Vishay Sprague | CAP ALUM 220UF 20% 50V RADIAL | 86% | View |
| EEU-FC1A221B | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V RADIAL | 73% | View |
| ELXY350ELL221MH20D | United Chemi-Con | CAP ALUM 220UF 20% 35V RADIAL | 72% | View |
| 860160574019 | Würth Elektronik | CAP ALUM 220UF 20% 35V RADIAL | 61% | View |
