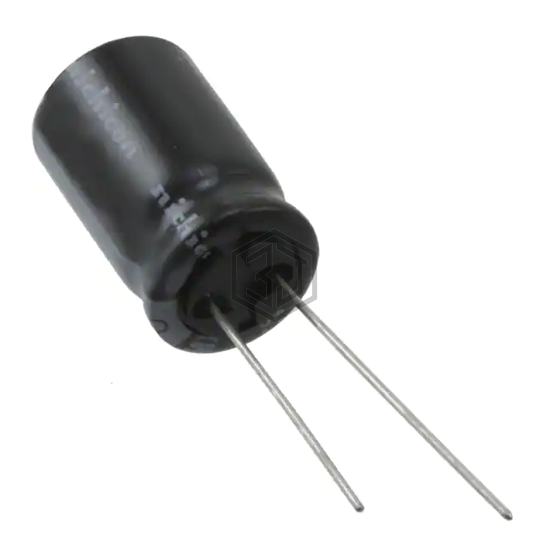

CAP ALUM 33000UF 20% 16V RADIAL
UVZ1C333MRH is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 9,148
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.9675 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.492" (12.50mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ1C333MRH is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVY1C333MRD | Nichicon | CAP ALUM 33000UF 20% 16V RADIAL | 100% | View |
| UVZ1C333MRD | Nichicon | CAP ALUM 33000UF 20% 16V RADIAL | 100% | View |
| 381LL353M016A032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 35000UF 20% 16V SNAP | 84% | View |
| UVZ1A333MRH | Nichicon | CAP ALUM 33000UF 20% 10V RADIAL | 83% | View |
| EKMQ100ELL333MP50S | United Chemi-Con | CAP ALUM 33000UF 20% 10V RADIAL | 81% | View |
| EKMQ6R3ELL333MN40S | United Chemi-Con | CAP ALUM 33000UF 20% 6.3V RADIAL | 62% | View |
Submit your RFQ for UVZ1C333MRH and get a quote within 24 hours.
