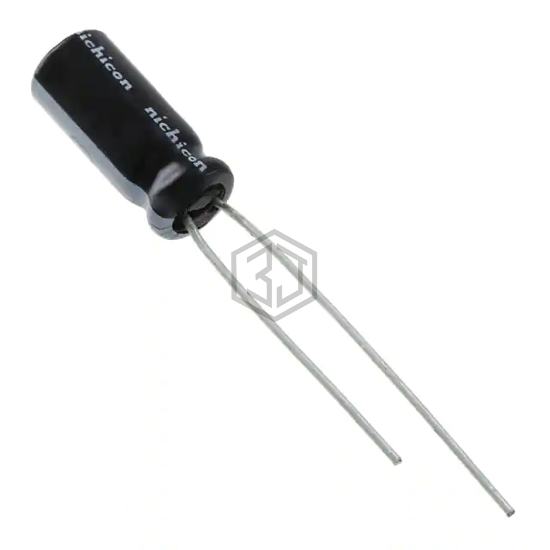

CAP ALUM 22UF 20% 16V RADIAL
UVZ1C220MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 22UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,857
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 54 mA @ 120 Hz |
| Ripple Current @ High Frequency | 108 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ1C220MDD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL212385229 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 22UF 20% 16V AXIAL | 95% | View |
| UPW1C220MDD1TA | Nichicon | CAP ALUM 22UF 20% 16V RADIAL | 88% | View |
| URZ1E220MDD1TD | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 86% | View |
| UEP1E220MED | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 86% | View |
| 50PX22MEFC5X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 72% | View |
| 517D226M6R3JA6AE3 | Vishay Sprague | CAP ALUM 22UF 20% 6.3V RADIAL | 57% | View |
Submit your RFQ for UVZ1C220MDD and get a quote within 24 hours.
