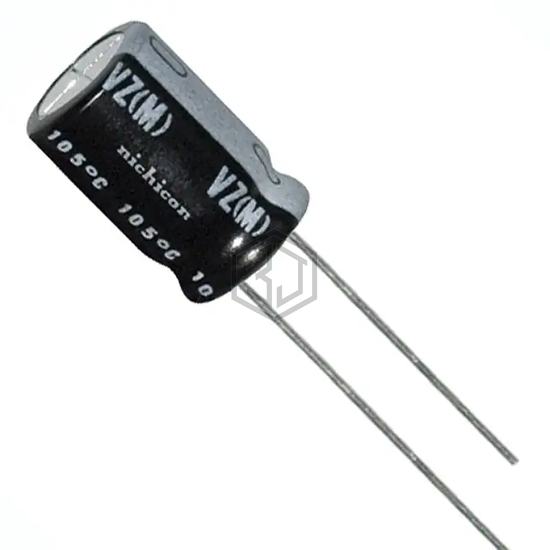

CAP ALUM 1000UF 20% 10V RADIAL
UVZ1A102MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,454
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 460 mA @ 120 Hz |
| Ripple Current @ High Frequency | 529 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVZ1A102MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 672D108H015ET5C | Vishay Sprague | CAP ALUM 1000UF 15V RADIAL | 74% | View |
| 678D108M6R3DG3D | Vishay Sprague | CAP ALUM 1000UF 20% 6.3V RADIAL | 70% | View |
| 672D108H6R3EK5C | Vishay Sprague | CAP ALUM 1000UF 6.3V RADIAL | 70% | View |
| MAL213635102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 16V RADIAL | 62% | View |
| MAL211925102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 16V AXIAL | 61% | View |
| 678D108M016DM3D | Vishay Sprague | CAP ALUM 1000UF 20% 16V RADIAL | 60% | View |
