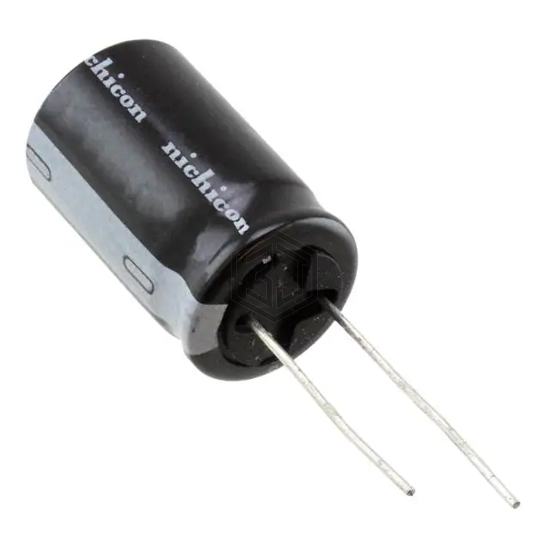

CAP ALUM 33UF 20% 450V RADIAL
UVY2W330MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 33UF 20% 450V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can.
In Stock: 2,348
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 125 mA @ 120 Hz |
| Ripple Current @ High Frequency | 143.75 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY2W330MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VHT33M450 | NTE Electronics, Inc | CAP ALUM 33UF 20% 450V RADIAL | 100% | View |
| 336CKE400M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 33UF 20% 400V RADIAL | 74% | View |
| UAQ2G330MHD6 | Nichicon | CAP ALUM 33UF 20% 400V RADIAL | 67% | View |
| EEU-FC1J330B | Panasonic Electronic Components | CAP ALUM 33UF 20% 63V RADIAL | 61% | View |
| ELXZ350ELL330MEB5D | United Chemi-Con | CAP ALUM 33UF 20% 35V RADIAL | 60% | View |
| EKYB630ELL330MF11D | United Chemi-Con | CAP ALUM 33UF 20% 63V RADIAL | 55% | View |
