CAP ALUM 68UF 20% 350V RADIAL

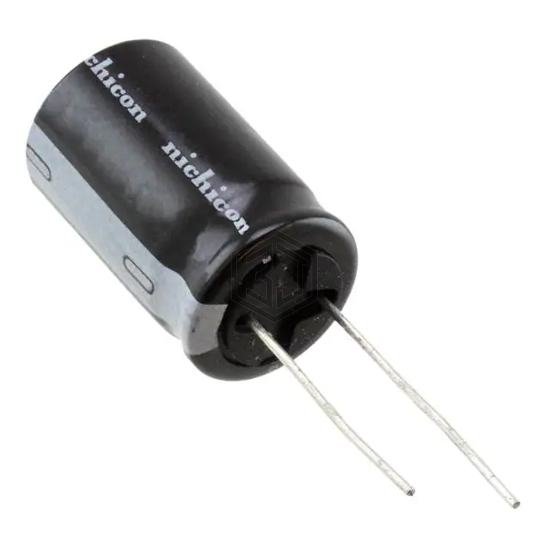

UVY2V680MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 7,052
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 285 mA @ 120 Hz |
| Ripple Current @ High Frequency | 327.75 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY2V680MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 860080473004 | Würth Elektronik | CAP ALUM 68UF 20% 25V RADIAL | 69% | View |
| EKMQ161ELL680MK20S | United Chemi-Con | CAP ALUM 68UF 20% 160V RADIAL | 68% | View |
| EEU-FM1V680B | Panasonic Electronic Components | CAP ALUM 68UF 20% 35V RADIAL | 68% | View |
| EEU-FC1V680B | Panasonic Electronic Components | CAP ALUM 68UF 20% 35V RADIAL | 66% | View |
| 200TXW68MEFR10X30 | Rubycon | CAP ALUM 68UF 20% 200V RADIAL TH | 64% | View |
| ELXZ630ELL680MH12D | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 60% | View |
Submit your RFQ for UVY2V680MHD and get a quote within 24 hours.
