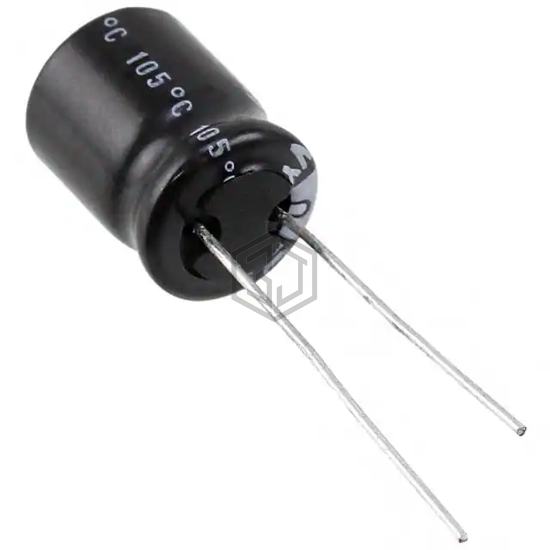

CAP ALUM 10UF 20% 250V RADIAL
UVY2E100MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 2,218
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 71 mA @ 120 Hz |
| Ripple Current @ High Frequency | 81.65 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY2E100MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ESE106M160AG3EA | KEMET | CAP ALUM RAD 105C | 80% | View |
| MAL214238109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 63V RADIAL | 71% | View |
| EKMQ101EC3100ME11D | United Chemi-Con | CAP ALUM 10UF 20% 100V RADIAL | 68% | View |
| MAL214251095E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 350V RADIAL | 65% | View |
| 50ZL10MEFCTZ5X7 | Rubycon | CAP ALUM 10UF 20% 50V RADIAL | 64% | View |
| EEA-GA1V100H | Panasonic Electronic Components | CAP ALUM 10UF 20% 35V RADIAL | 52% | View |
Submit your RFQ for UVY2E100MPD and get a quote within 24 hours.
