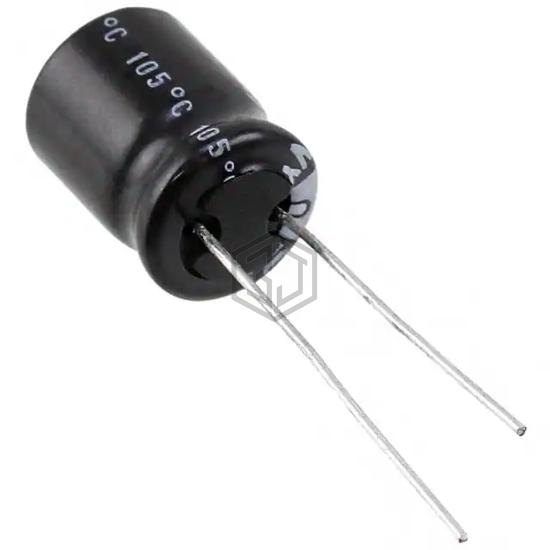

CAP ALUM 68UF 20% 100V RADIAL
UVY2A680MPD1TD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 68UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 2,139
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 190 mA @ 120 Hz |
| Ripple Current @ High Frequency | 380 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY2A680MPD1TD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41858G8686M006 | EPCOS - TDK Electronics | CAPACITOR | 100% | View |
| B41858G8686M008 | EPCOS - TDK Electronics | CAPACITOR | 100% | View |
| EEU-FC2A680 | Panasonic Electronic Components | CAP ALUM 68UF 20% 100V RADIAL | 80% | View |
| ELXY630ELL680MH15D | United Chemi-Con | CAP ALUM 68UF 20% 63V RADIAL | 78% | View |
| 672D686H150FV3J | Vishay Sprague | CAP ALUM 68UF 150V RADIAL | 74% | View |
| EEU-FC1V680H | Panasonic Electronic Components | CAP ALUM 68UF 20% 35V RADIAL | 72% | View |
Submit your RFQ for UVY2A680MPD1TD and get a quote within 24 hours.
