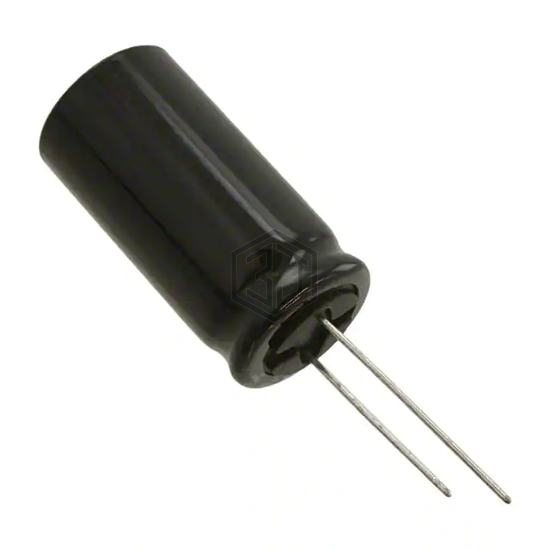

CAP ALUM 1000UF 20% 100V RADIAL
UVY2A102MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1000UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,731
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 960 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.104 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY2A102MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ1H102MHD1CV | Nichicon | CAP ALUM 50V POLAR | 78% | View |
| RXK102M1ABK-1020S | Surge | CAP ALUM 10V POLAR | 74% | View |
| MAL212323102 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 6.3V AXIAL | 71% | View |
| MAL224631102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 50V RADIAL | 66% | View |
| B41858C7108M8 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 35V RADIAL | 56% | View |
| UPA1C102MPD6TD | Nichicon | CAP ALUM 1000UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for UVY2A102MHD and get a quote within 24 hours.
