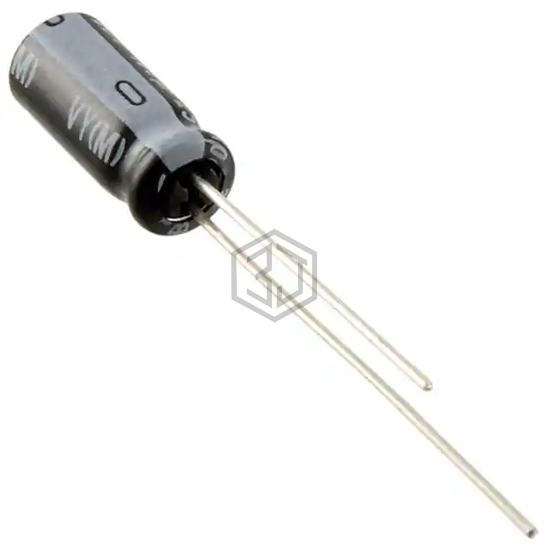

CAP ALUM 10UF 20% 100V RADIAL
UVY2A100MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 9,425
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 50 mA @ 120 Hz |
| Ripple Current @ High Frequency | 100 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY2A100MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ101EC3100ME11D | United Chemi-Con | CAP ALUM 10UF 20% 100V RADIAL | 97% | View |
| USF1V100MDD | Nichicon | CAP ALUM 10UF 20% 35V RADIAL | 74% | View |
| EEU-FC1H100H | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V RADIAL | 73% | View |
| EEA-GA1V100H | Panasonic Electronic Components | CAP ALUM 10UF 20% 35V RADIAL | 56% | View |
| UBW1H100MPD | Nichicon | CAP ALUM 10UF 20% 50V RADIAL | 51% | View |
| UBW1H100MPD1TA | Nichicon | CAP ALUM 10UF 20% 50V RADIAL | 51% | View |
