CAP ALUM 2200UF 20% 63V RADIAL

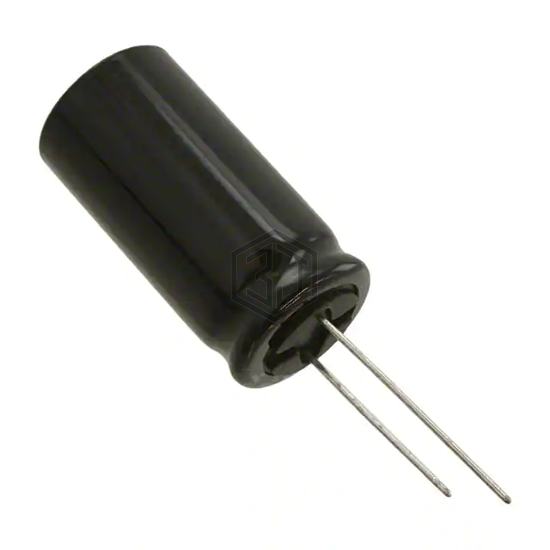

UVY1J222MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2200UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8975 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY1J222MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB00JS422H00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 50V RADIAL | 86% | View |
| UPS1H222MHD | Nichicon | CAP ALUM 2200UF 20% 50V RADIAL | 84% | View |
| RXW222M1HBK-1836S | SURGE | CAP ALUM 2200UF 20% 50V RADIAL | 75% | View |
| MAL213690226E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 35V RADIAL | 70% | View |
| 228KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 2200UF 20% 50V RADIAL | 65% | View |
| 517D228M025EK6AE3 | Vishay Sprague | CAP ALUM 2200UF 20% 25V RADIAL | 65% | View |
Submit your RFQ for UVY1J222MHD and get a quote within 24 hours.
