CAP ALUM 4.7UF 20% 50V RADIAL

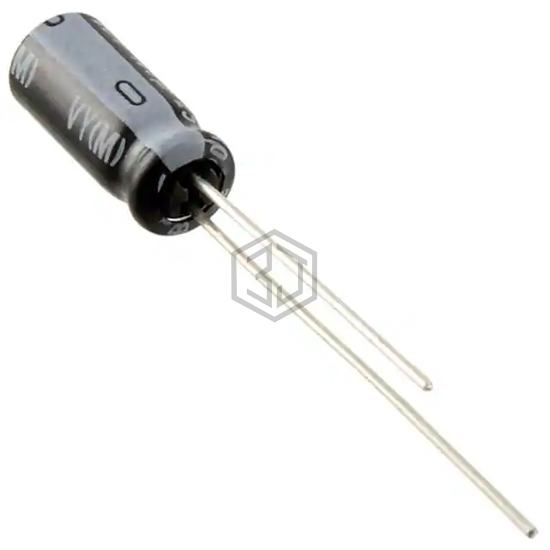

UVY1H4R7MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 4.7UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,095
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 4.7 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 30 mA @ 120 Hz |
| Ripple Current @ High Frequency | 60 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY1H4R7MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVZ1H4R7MDH | Nichicon | CAP ALUM 4.7UF 20% 50V RADIAL | 100% | View |
| ECA-1HHG4R7B | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 50V RADIAL | 93% | View |
| UEP1J4R7MDD1TA | Nichicon | CAP ALUM 4.7UF 20% 63V RADIAL | 85% | View |
| 517D475M035JA6AE3 | Vishay Sprague | CAP ALUM 4.7UF 20% 35V RADIAL | 84% | View |
| EEU-FC2A4R7B | Panasonic Electronic Components | CAP ALUM 4.7UF 20% 100V RADIAL | 60% | View |
| 600D475F150KD5 | Vishay Sprague | CAP ALUM 4.7UF 150V AXIAL | 56% | View |
Submit your RFQ for UVY1H4R7MDD1TA and get a quote within 24 hours.
