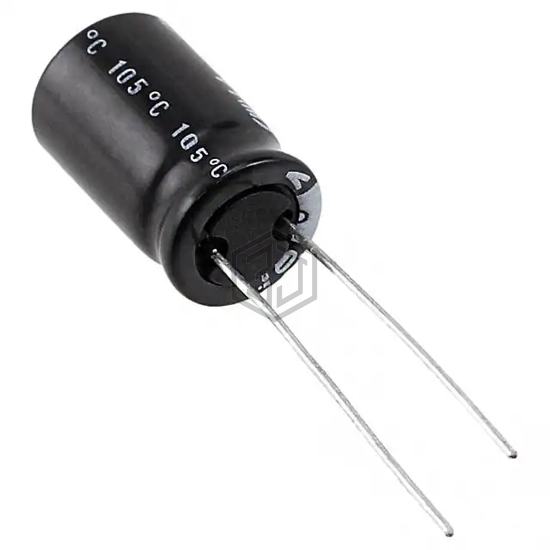

CAP ALUM 330UF 20% 50V RADIAL
UVY1H331MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 330UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 4,894
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 410 mA @ 120 Hz |
| Ripple Current @ High Frequency | 615 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY1H331MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50YXA330MEFCT810X16 | Rubycon | CAP ALUM 330UF 20% 50V RADIAL | 96% | View |
| UVZ1J331MPH | Nichicon | CAP ALUM 330UF 20% 63V RADIAL | 83% | View |
| UPS1V331MPD1TD | Nichicon | CAP ALUM 330UF 20% 35V RADIAL | 75% | View |
| RXW331M1VBK-0820S | SURGE | CAP ALUM 330UF 20% 35V RADIAL | 70% | View |
| MAL211918331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 63V AXIAL | 66% | View |
| 337RZM016M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 330UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for UVY1H331MPD and get a quote within 24 hours.
