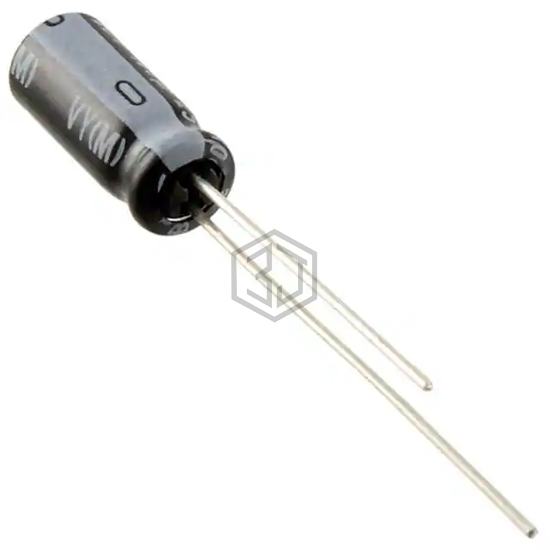

CAP ALUM 2.2UF 20% 50V RADIAL
UVY1H2R2MDD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 2.2UF 20% 50V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can.
In Stock: 8,341
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 mA @ 120 Hz |
| Ripple Current @ High Frequency | 40 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY1H2R2MDD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK2R2M050ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 2.2UF 20% 50V RADIAL | 100% | View |
| 50PX2.2MEFC5X11 | Rubycon | CAP ALUM 2.2UF 20% 50V RADIAL | 93% | View |
| 50PX2R2MEFC5X11 | Rubycon | CAP ALUM 50V POLAR | 93% | View |
| UPJ1H2R2MDD | Nichicon | CAP ALUM 2.2UF 20% 50V RADIAL | 86% | View |
| UBX1V2R2MPL1TD | Nichicon | CAP ALUM 2.2UF 20% 35V RADIAL | 78% | View |
| UPJ2A2R2MDD1TD | Nichicon | CAP ALUM 2.2UF 20% 100V RADIAL | 76% | View |
