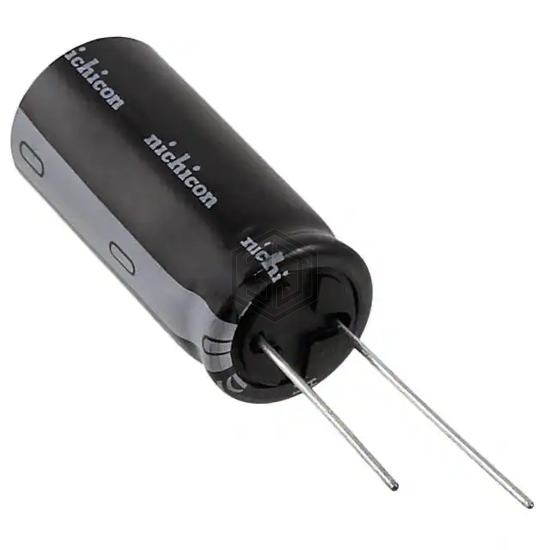

CAP ALUM 6800UF 20% 25V RADIAL
UVY1E682MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 3,666
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.85 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.1275 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY1E682MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ250ELL682MLP1S | United Chemi-Con | CAP ALUM 6800UF 20% 25V RADIAL | 99% | View |
| MAL215056682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 25V RADIAL | 88% | View |
| 6.3PX6800MEFCG412.5X25 | Rubycon | CAP ALUM 6800UF 20% 6.3V RADIAL | 68% | View |
| MAL213664682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V RADIAL | 66% | View |
| B41605E5688M2S1 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 25V SNAP | 64% | View |
| B41605E5688M8 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 25V RADIAL | 64% | View |
Submit your RFQ for UVY1E682MHD and get a quote within 24 hours.
