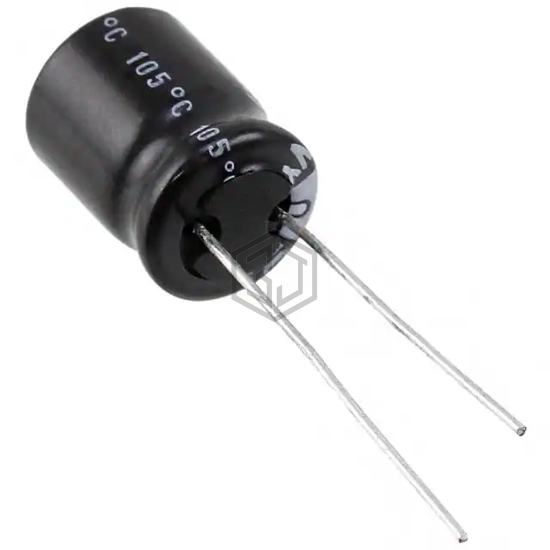

CAP ALUM 470UF 20% 25V RADIAL
UVY1E471MPD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 470UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,166
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 380 mA @ 120 Hz |
| Ripple Current @ High Frequency | 570 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY1E471MPD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| URY1V471MHD | Nichicon | CAP ALUM 470UF 20% 35V RADIAL | 83% | View |
| MAL215095478E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 470UF 20% 16V RADIAL | 74% | View |
| B41858C4477M000 | EPCOS - TDK Electronics | CAP ALUM 470UF 20% 16V RADIAL | 73% | View |
| UPW1C471MPD6 | Nichicon | CAP ALUM 470UF 20% 16V RADIAL | 72% | View |
| 10PX470MEFC6.3X11 | Rubycon | CAP ALUM 470UF 20% 10V RADIAL | 61% | View |
| 477RZM010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 470UF 20% 10V RADIAL | 56% | View |
