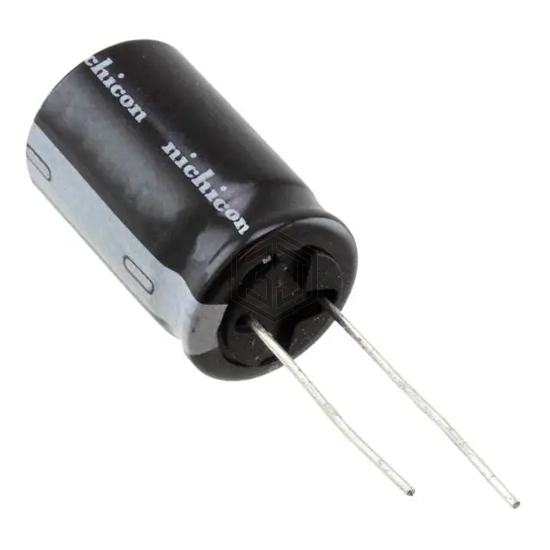

CAP ALUM 6800UF 20% 16V RADIAL
UVY1C682MHD1TN is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 6,366
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.84 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY1C682MHD1TN is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25PX6800MEFCGC16X35.5 | Rubycon | CAP ALUM 6800UF 20% 25V RADIAL | 78% | View |
| SEK682M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 25V RADIAL | 71% | View |
| ELXZ250ELL682MMP1S | United Chemi-Con | CAP ALUM 6800UF 20% 25V RADIAL | 71% | View |
| 35PX6800MEFCGC18X35.5 | Rubycon | CAP ALUM 6800UF 20% 35V RADIAL | 70% | View |
| ELXZ6R3ETS682MM20S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 65% | View |
| ELXZ6R3ETS682ML25S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 64% | View |
Submit your RFQ for UVY1C682MHD1TN and get a quote within 24 hours.
