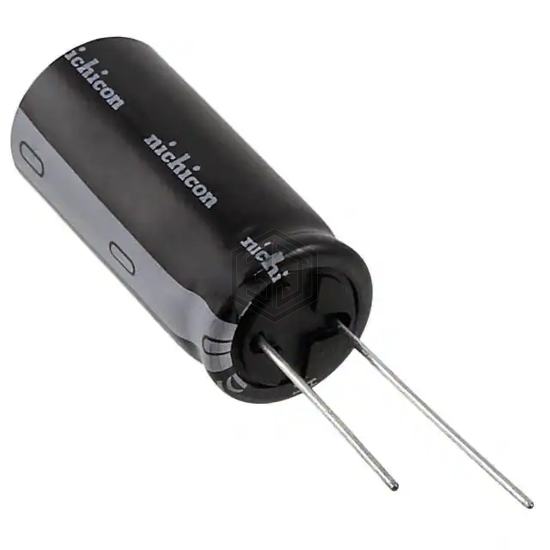

CAP ALUM 10000UF 20% 16V RADIAL
UVY1C103MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 18
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.93 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.2195 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY1C103MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 601D109G015JS2 | Vishay Sprague | CAP ALUM 10000UF 15V AXIAL | 96% | View |
| EEU-HD1A103 | Panasonic Electronic Components | CAP ALUM 10000UF 20% 10V RADIAL | 85% | View |
| UVZ1A103MHD | Nichicon | CAP ALUM 10000UF 20% 10V RADIAL | 85% | View |
| EEU-HD1A103B | Panasonic Electronic Components | CAP ALUM 10000UF 20% 10V RADIAL | 85% | View |
| UVZ1E103MRH | Nichicon | CAP ALUM 10000UF 20% 25V RADIAL | 81% | View |
| RJA103M1ABK-1632S | Surge | CAP ALUM 10V POLAR | 79% | View |
Submit your RFQ for UVY1C103MHD and get a quote within 24 hours.
