CAP ALUM 6800UF 20% 6.3V RADIAL

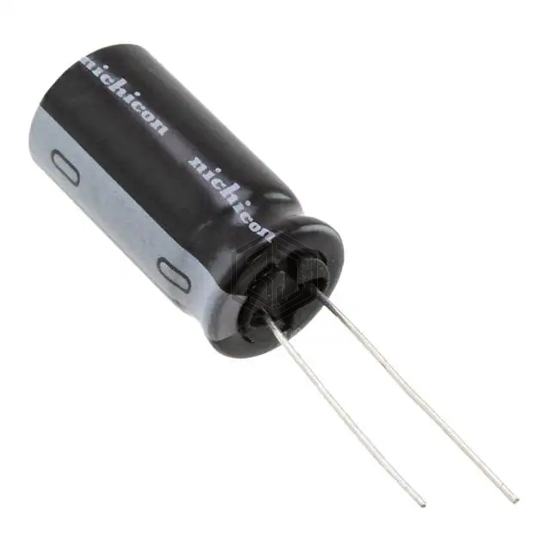

UVY0J682MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 6800UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 5,717
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.5525 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY0J682MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMG6R3ELL682MK25S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 99% | View |
| EEU-FC0J682 | Panasonic Electronic Components | CAP ALUM 6800UF 20% 6.3V RADIAL | 77% | View |
| MAL211814682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V AXIAL | 72% | View |
| MAL213694685E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 10V RADIAL | 64% | View |
| 25PX6800MEFC16X35.5 | Rubycon | CAP ALUM 6800UF 20% 25V RADIAL | 62% | View |
| EKMG250ELL682MMP1S | United Chemi-Con | CAP ALUM 6800UF 20% 25V RADIAL | 61% | View |
