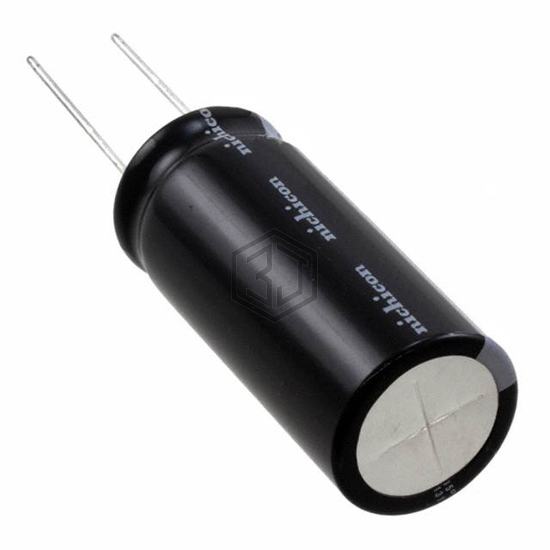

CAP ALUM 47000UF 20% 6.3V RADIAL
UVY0J473MRD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 47000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 5,931
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.78 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.197 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY0J473MRD is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ6R3ELL473MP50S | United Chemi-Con | CAP ALUM 47000UF 20% 6.3V RADIAL | 99% | View |
| MLPS403M7R5EH0C | Cornell Dubilier Knowles | CAP ALUM 40000UF 20% 7.5V RADIAL | 88% | View |
| MLPS513M7R5EB0C | Cornell Dubilier Knowles | CAP ALUM 51000UF 20% 7.5V RADIAL | 84% | View |
| UVY0J683MRD | Nichicon | CAP ALUM 68000UF 20% 6.3V RADIAL | 81% | View |
| EKMQ6R3ELL333MN40S | United Chemi-Con | CAP ALUM 33000UF 20% 6.3V RADIAL | 80% | View |
| MLPS403M010EH0C | Cornell Dubilier Knowles | CAP ALUM 40000UF 20% 10V RADIAL | 79% | View |
