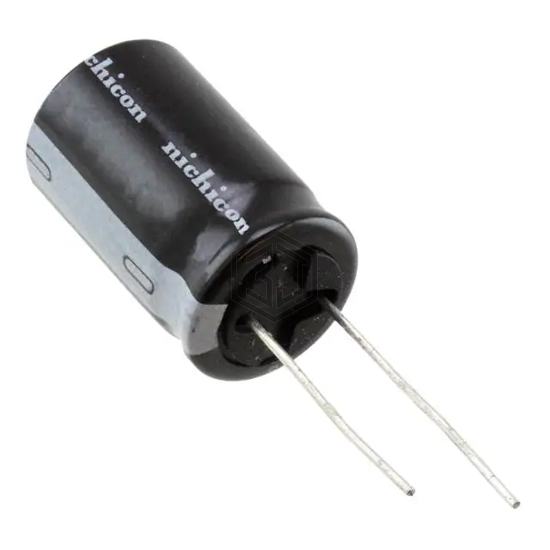

CAP ALUM 10000UF 20% 6.3V RADIAL
UVY0J103MHD is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10000UF 20% 6.3V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 8,971
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.8975 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVY0J103MHD is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKB05JG510B00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 6.3V RADIAL | 97% | View |
| MALREKB00JG510B00K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 6.3V RADIAL | 97% | View |
| MALREKB00JG510BG0K | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 6.3V RADIAL | 97% | View |
| MAL211844103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V T/H | 77% | View |
| EKMG160ELL103MMP1S | United Chemi-Con | CAP ALUM 10000UF 20% 16V RADIAL | 70% | View |
| ELXZ100ELL103ML40S | United Chemi-Con | CAP ALUM 10000UF 20% 10V RADIAL | 54% | View |
