CAP ALUM 1UF 20% 400V RADIAL

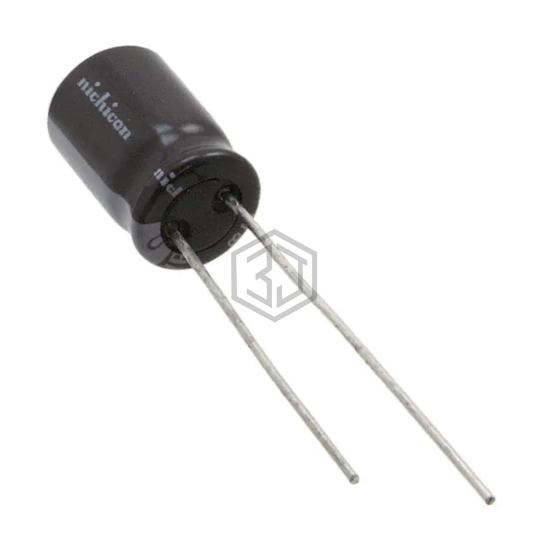

UVR2G010MPA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 1UF 20% 400V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 2,659
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 25 mA @ 120 Hz |
| Ripple Current @ High Frequency | 40 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVR2G010MPA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214271086E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1UF 20% 400V RADIAL | 92% | View |
| SMG400VB1R0M6X11LL | United Chemi-Con | CAP ALUM 1UF 20% 400V RADIAL | 89% | View |
| UPS2F010MPD1TD | Nichicon | CAP ALUM 1UF 20% 315V RADIAL | 71% | View |
| UKL2A010KDD1TD | Nichicon | CAP ALUM 1UF 20% 100V RADIAL | 71% | View |
| 100YXM1MEFRT15X11 | Rubycon | CAP ALUM 1UF 20% 100V RADIAL | 69% | View |
| SMG100VB1R0M5X11LL | United Chemi-Con | CAP ALUM 1UF 20% 100V RADIAL | 68% | View |
