CAP ALUM 3300UF 20% 35V RADIAL

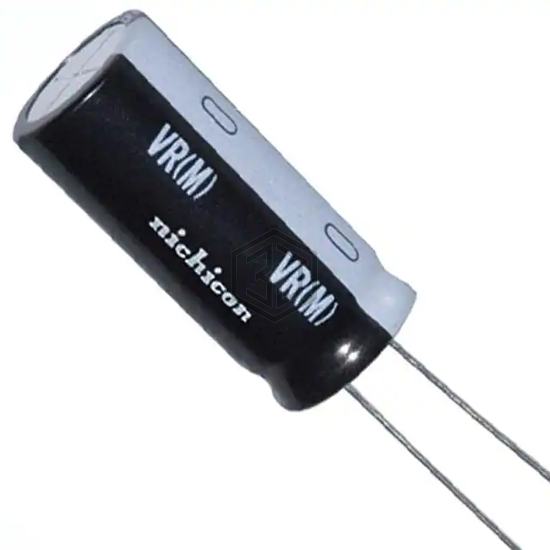

UVR1V332MHA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 3300UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,614
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.28 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.622 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.476" (37.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVR1V332MHA is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-TP1E332S | Panasonic Electronic Components | CAP ALUM 3300UF 20% 25V RADIAL | 87% | View |
| MAL202147332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 40V SNAP | 87% | View |
| KY35VB332M16X40LL | United Chemi-Con | CAP ALUM 3300UF 20% 35V RADIAL | 82% | View |
| EEU-FS1E332L | Panasonic Electronic Components | CAP ALUM 3300UF 20% 25V RADIAL | 75% | View |
| EEU-FC1A332 | Panasonic Electronic Components | CAP ALUM 3300UF 20% 10V RADIAL | 72% | View |
| MAL215669332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 100V SNAP | 64% | View |
