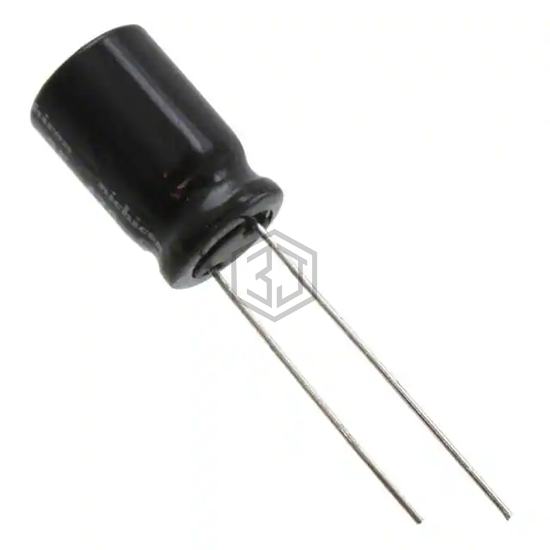

CAP ALUM 10UF 20% 35V RADIAL
UVR1V100MDD1TA is a Aluminum Electrolytic Capacitors manufactured by Nichicon. CAP ALUM 10UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 9,546
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 60 mA @ 120 Hz |
| Ripple Current @ High Frequency | 120 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
UVR1V100MDD1TA is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RXW100M1VBK-0511S | Surge | CAP ALUM 35V POLAR | 85% | View |
| EST106M050AC3AA | KEMET | CAP ALUM RAD 105C | 84% | View |
| EST106M050AC3JA | KEMET | CAP ALUM RAD 105C | 84% | View |
| 515D106M035JA8PE3 | Vishay Sprague | CAP ALUM 10UF 20% 35V RADIAL | 76% | View |
| MAL211928109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 63V AXIAL | 72% | View |
| EKMQ161ELL100MHB5D | United Chemi-Con | CAP ALUM 10UF 20% 160V RADIAL | 58% | View |
